技术参数Technical parameter
型号Model | JX-GL2000 |
材质Texture of material | 304不锈钢 Stainless steel |
电压/频率Voltage/frequency | 380V/50HZ |
功率power | 5.5KW |
料斗容积Hopper volume | 300L |
输送能力Transport capacity | 2T/h |
输送方式Transport mode | 螺杆screw pump |
设备重量Equipment weight | ≈800kg |
外形尺寸Shape size | L2400*W700*H1200mm |

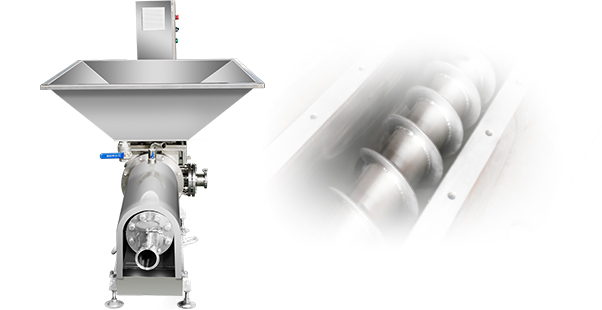

Product Description:
●This machine adopts screw conveying material design and variable frequency speed regulation.
●Double layer hopper design, interlayer can put ice water and ice, and material temperature is not easy to rise.
●The propeller conveyor can be used in various industries to provide continuous, stable, stable and low pulse transmission, and the measurement is proportional to the speed.
●It is mainly used for pumping high viscosity, compact, fragile and easy to bridge medium.
●The suction chamber is designed with large rectangular hopper and trumpet extrusion chamber and special connecting rod. The connecting rod is equipped with a patented product, horizontal positioning screw feeder. The design is more convenient for feeding materials into the cavity of propeller conveyor.
